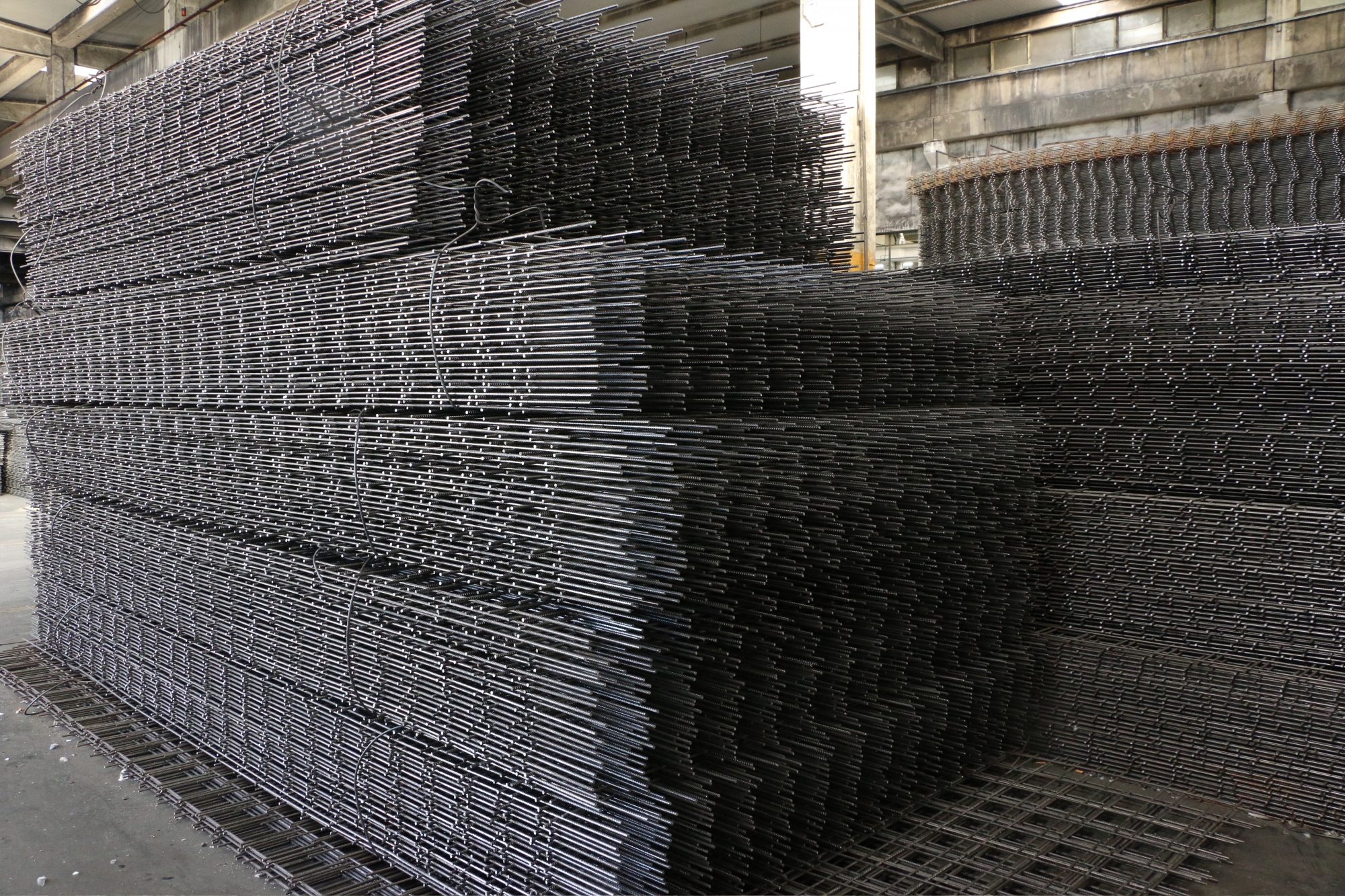

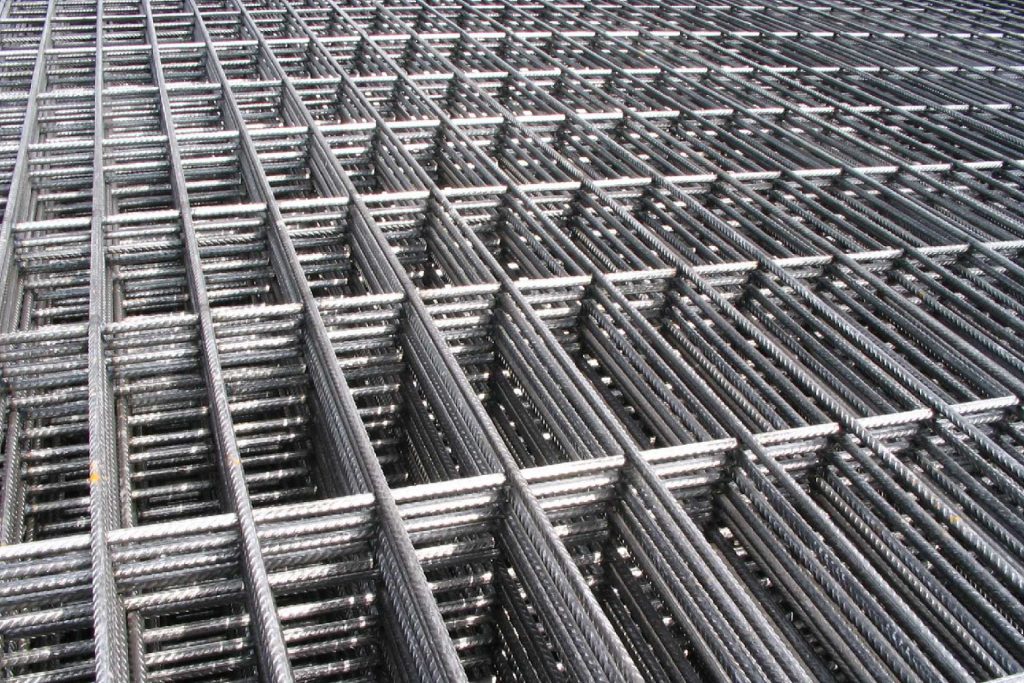

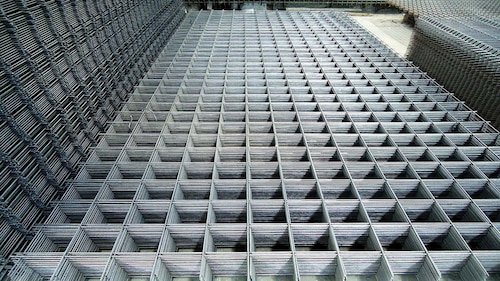

Çelik Hasır

Ankara Demir Çelik A.Ş. Tarafından S220 çeliğinden soğuk çekme yöntemi ile çekilip nervürlenerek yüksek hassasiyetli makinelerde elektro kaynak yapılarak imal edilen, yüksek dayanıklılığa (mukavemete) sahip ana amaç olarak inşaatlarda kullanılan bir beton çeliğidir. Günümüz teknolojisinin kalite üstünlüğüne de sahip olan çelik hasırlar kullanım yerine göre malzemeden zamandan, işçilikten, nakliyeden dolasıyla maliyetlerinizden tasarruf sağlar.

Q Tipi Hasır Çelik Tablosu
Hasır Tipi Q	Çubuk Aralığı (mm) Boy/En	Çubuk Çapı (mm) Boy/En	Hasır Kesit Alanı (cm²/m) Boy/En	Hasır Birim Ağırlığı kg/m²
Q 106/106	150/150	4.5/4.5	1.06/1.06	1.70
Q 131/131	150/150	5.0/5.0	1.31/1.31	2.09
Q 158/131	150/150	5.5/5.0	1.58/1.31	2.32
Q 158/158	150/150	5.5/5.5	1.58/1.58	2.54
Q 188/131	150/150	6.0/5.0	1.88/1.31	2.57
Q 188/158	150/150	6.0/5.5	1.88/1.58	2.78
Q 188/188	150/150	6.0/6.0	1.88/1.88	3.01
Q 221/131	150/150	6.5/5.0	2.21/1.31	2.83
Q 221/158	150/150	6.5/5.5	2.21/1.58	3.05
Q 221/188	150/150	6.5/6.0	2.21/1.88	3.28
Q 221/221	150/150	6.5/6.5	2.21/2.21	3.53
Q 257/131	150/150	7.0/6.0	2.57/1.31	3.12
Q 257/158	150/150	7.0/6.5	2.57/1.58	3.34
Q 257/188	150/150	7.0/4.5	2.57/1.88	3.57
Q 257/221	150/150	7.0/5.0	2.57/2.21	3.82
Q 257/257	150/150	7.0/5.0	2.57/2.57	4.10
Q 295/131	150/150	7.5/5.0	2.95/1.31	3.44
Q 295/158	150/150	7.5/5.5	2.95/1.58	3.66
Q 295/188	150/150	7.5/6.0	2.95/1.88	3.89
Q 295/221	150/150	7.5/6.5	2.95/2.21	4.14
Q 295/257	150/150	7.5/7.0	2.95/2.57	4.41
Q 295/295	150/150	7.5/7.5	2.95/2.95	4.71
Q 317/131	150/150	5.5d/5.0	3.17/1.31	2.93
Q 317/158	150/150	5.5d/5.5	3.17/1.58	3.15
Q 317/188	150/150	5.5d/6.0	3.17/1.88	3.38
Q 317/221	150/150	5.5d/6.5	3.17/2.21	3.63
Q 317/257	150/150	5.5d/7.0	3.17/2.57	3.91
Q 317/295	150/150	5.5d/7.5	3.17/2.95	4.20
Q 317/131	150/150	6.0d/5.0	3.17/1.31	3.29
Q 377/158	150/150	6.0d/5.5	3.77/1.58	3.51
Q 377/188	150/150	6.0d/6.0	3.77/1.88	3.74
Q 377/221	150/150	6.0d/6.5	3.77/2.21	3.99
Q 377/257	150/150	6.0d/7.0	3.77/2.57	4.26
Q 377/295	150/150	6.0d/7.5	3.77/2.95	4.56
Q 443/158	150/150	6.5d/5.5	4.43/1.58	3.89
Q 443/188	150/150	6.5d/6.0	4.43/1.88	4.13
Q 443/221	150/150	6.5d/6.5	4.43/2.21	4.38
Q 443/257	150/150	6.5d/7.0	4.43/2.57	4.65
Q 443/295	150/150	6.5d/7.5	4.43/2.95	4.95
Q 513/188	150/150	7.0d/6.0	5.13/1.88	4.56
Q 513/221	150/150	7.0d/6.5	5.13/2.21	4.81
Q 513/257	150/150	7.0d/7.0	5.13/2.57	5.08
Q 513/295	150/150	7.0d/7.5	5.13/2.95	5.38
Q 513/221	150/150	7.5d/6.5	5.89/2.21	5.27
Q 513/257	150/150	7.5d/7.0	5.89/2.57	5.54
Q 513/295	150/150	7.5d/7.5	5.89/2.95	5.84

R Tipi Hasır Çelik Tablosu
Hasır Tipi R	Çubuk Aralığı (mm) Boy/En	Çubuk Çapı (mm) Boy/En	Hasır Kesit Alanı (cm²/m) Boy/En	Hasır Birim Ağırlığı kg/m²
R 106	150/250	4.5/4.5	1.06/0.64	1.33
R 131	150/250	5.0/5.0	1.31/0.78	1.65
R 158	150/250	5.5/5.0	1.58/0.78	1.86
R 188	150/250	6.0/5.0	1.88/0.78	2.10
R 221	150/250	6.5/5.0	2.21/0.78	2.36
R 257	150/250	7.0/5.0	2.57/0.78	2.63
R 295	150/250	7.5/5.0	2.95/0.78	2.93
R 317	150/250	5.5d/5.0	3.17/0.78	3.11
R 335	150/250	8.0/5.0	3.35/0.78	3.25
R 377	150/250	6.0d/5.0	3.77/0.78	3.58
R 443	150/250	6.5d/5.5	4.43/0.95	4.22
R 513	150/250	7.0d/6.0	5.13/1.13	4.92
R 589	150/250	7.5d/6.5	5.89/1.33	5.66

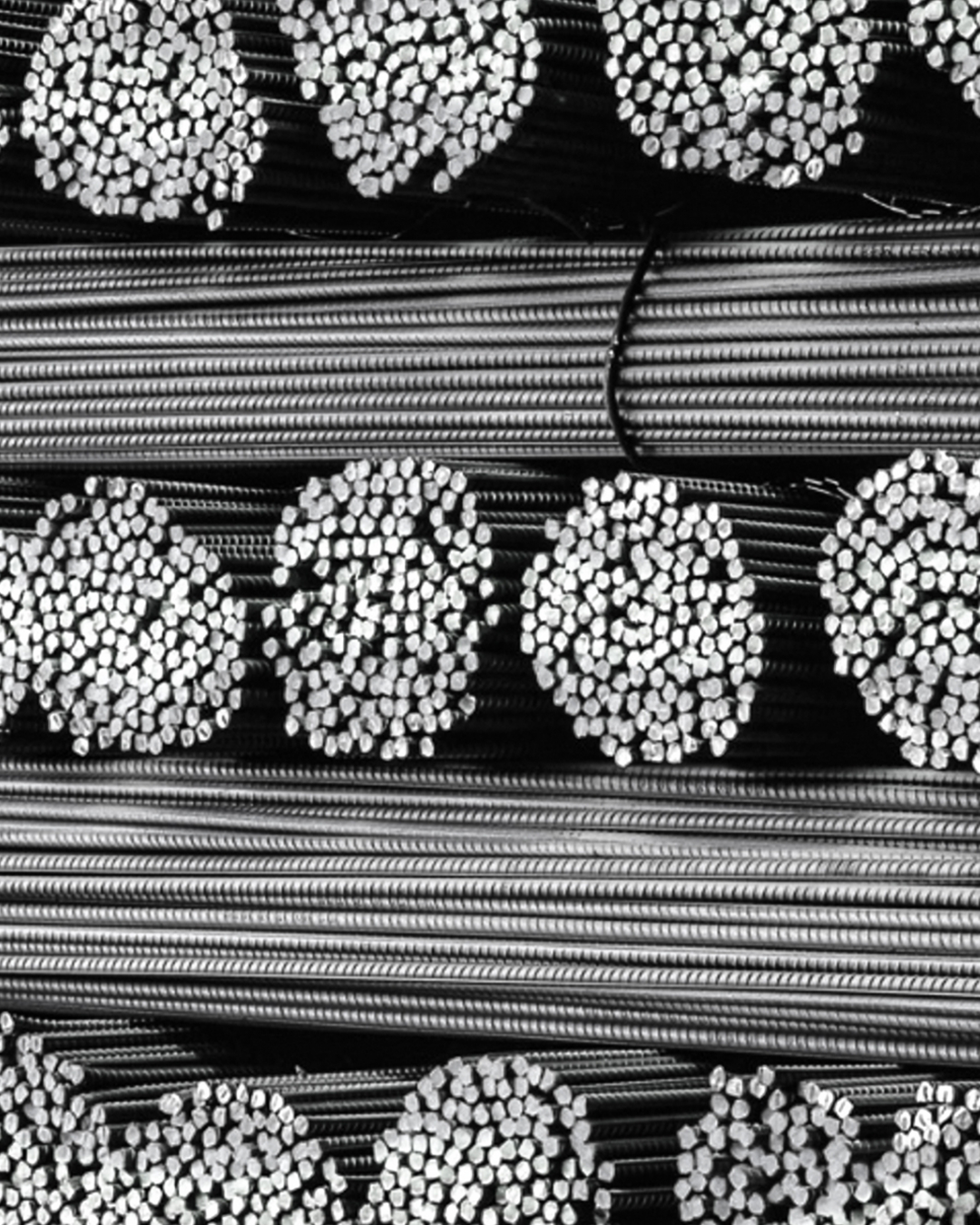

Nervürlü İnşaat Demiri Tablosu
Çap ( mm )	1000mm kg	Standart Boy (12000mm)
8,00	0,395 Kg	4,742 Kg
10,00	0,618 Kg	7,410 Kg
12,00	0,889 Kg	10,670 Kg
14,00	1,210 Kg	14,524 Kg
16,00	1,581 Kg	18,970 Kg
18,00	2,001 Kg	24,008 Kg
20,00	2,470 Kg	29,640 Kg
22,00	2,989 Kg	35,864 Kg
24,00	3,557 Kg	42,682 Kg
25,00	3,859 Kg	46,313 Kg
26,00	4,174 Kg	50,092 Kg
28,00	4,841 Kg	58,094 Kg
32,00	6,323 Kg	75,878 Kg
